Implementing Rate Limiting with Redis in svgl

The Challenge

As the svgl project continues to grow, maintaining service stability and preventing abuse becomes a top priority. Without proper guardrails, a single endpoint could theoretically be overwhelmed by high-frequency requests, potentially degrading the experience for all users. We needed a robust way to throttle traffic efficiently.

The Approach

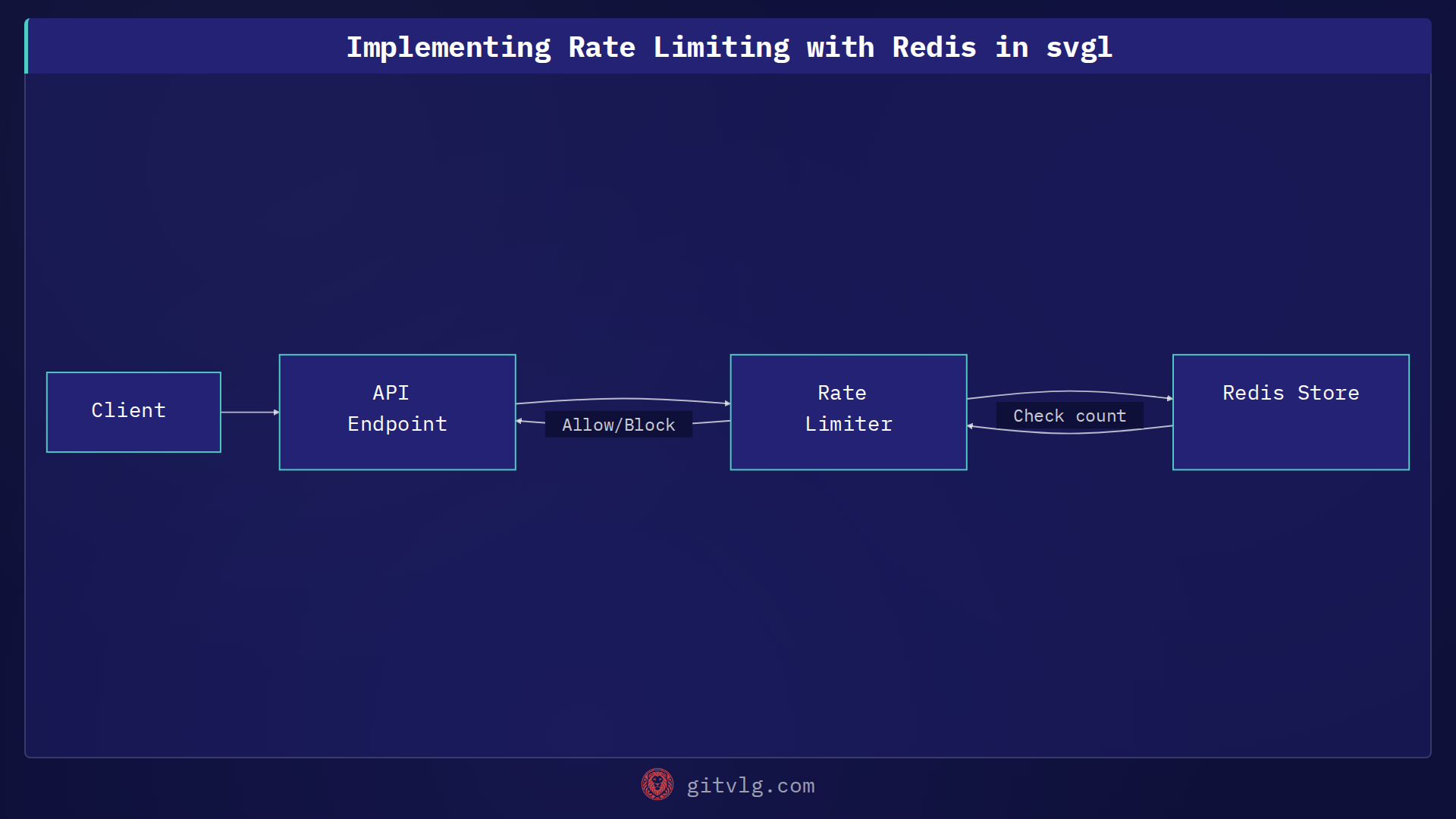

To address this, we integrated Upstash’s serverless Redis solution. By leveraging Redis for distributed state management, we can track request counts across multiple instances, ensuring that rate limits are enforced consistently regardless of where the request lands.

Integrating Redis-based Ratelimit

We utilized the @upstash/ratelimit package alongside @upstash/redis to implement a sliding window algorithm. This approach is superior to fixed-window counters because it prevents "bursts" of traffic at the boundaries of time windows.

import { Ratelimit } from "@upstash/ratelimit";
import { Redis } from "@upstash/redis";

const redis = new Redis({ url: "...", token: "..." });

const ratelimit = new Ratelimit({
  redis: redis,
  limiter: Ratelimit.slidingWindow(10, "10 s"),
});

async function handleRequest(id: string) {
  const { success } = await ratelimit.limit(id);
  if (!success) return new Response("Too many requests", { status: 429 });
  // Proceed with request processing
}

This implementation works like a digital velvet rope at a nightclub. If a user tries to "cut in line" by sending too many requests within a short timeframe, the ratelimit instance checks the Redis store and instructs our application to politely turn them away until the quota resets.

Implementation Benefits

1. State Persistence: Unlike in-memory caches which clear on server restarts, Redis keeps our rate limit data persistent.
2. Low Latency: Because Upstash Redis operates over HTTP, it minimizes the overhead of traditional connection pooling in serverless environments.
3. Scalability: As the project scales, we can adjust the limit configuration without changing the underlying architecture.

Key Takeaway

Adding a rate limiter is like installing a circuit breaker in your home. You hope you never have to trip it, but having it there ensures that a temporary surge doesn't lead to a total system failure. By delegating this logic to Redis, we keep our application code clean and our infrastructure resilient.
