Refining Reactive Architectures: Lessons from the Plataforma-Visioner7 Update

In our work on the Plataforma-Visioner7 project, we recently completed a comprehensive update cycle. This project, which leverages Angular to provide a complex interactive interface, has reached a stable maturity point that allowed us to step back and evaluate our data flow patterns.

The Challenge: Managing State Complexity

As Plataforma-Visioner7 grew, we noticed that passing data through deeply nested components was becoming fragile. We relied heavily on standard property binding, which meant that any change in the data structure required updates across multiple layers of our view components.

Moving Toward Reactive Patterns

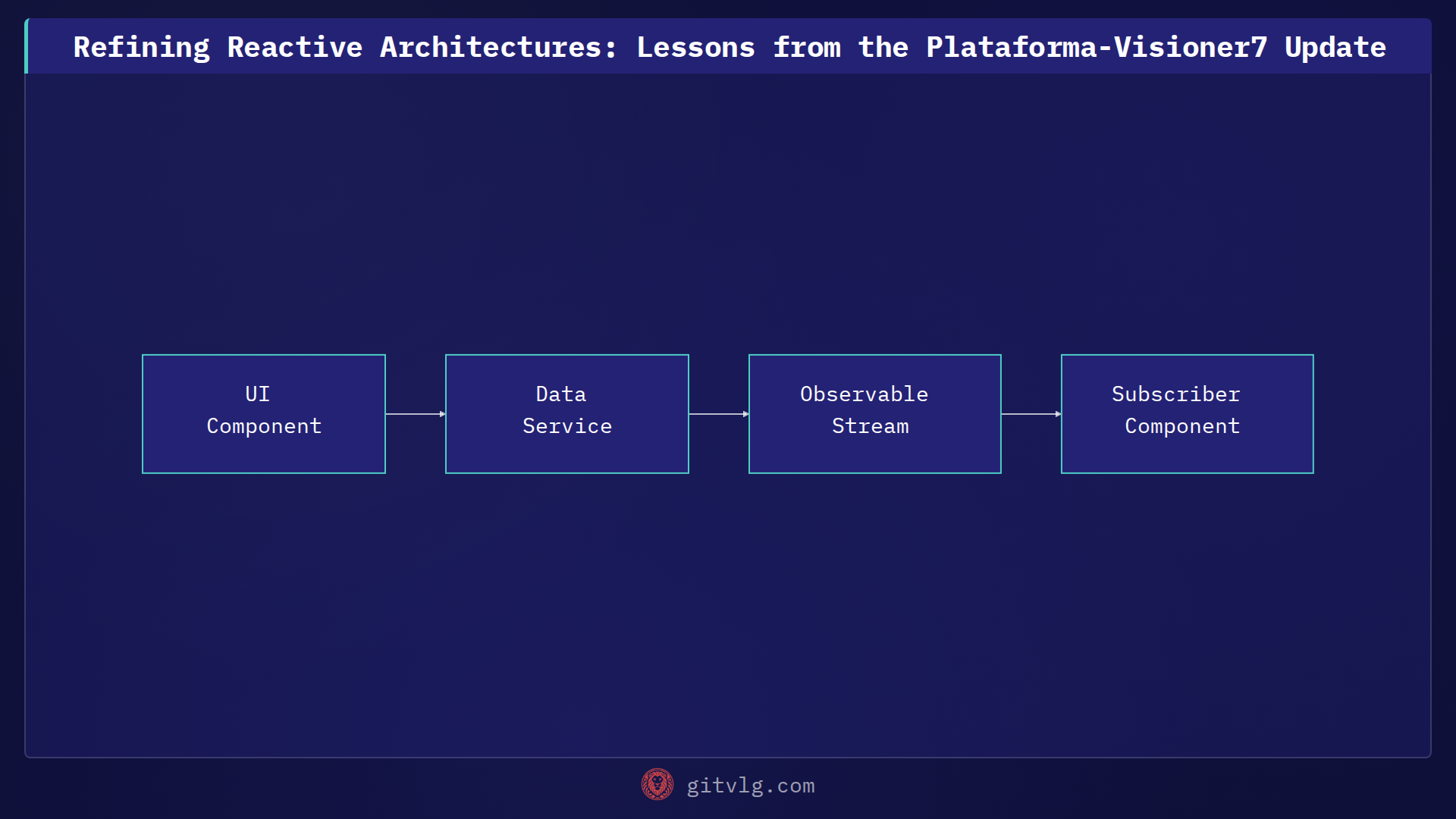

To simplify this, we shifted our focus toward the Observer Pattern. By utilizing RxJS within our Angular services, we turned our state management into a stream of events that components could subscribe to. This decoupling significantly reduced the amount of boilerplate code in our HTML templates.

import { Injectable } from '@angular/core';
import { BehaviorSubject, Observable } from 'rxjs';

@Injectable({ providedIn: 'root' })
export class DataService {
  private stateSource = new BehaviorSubject<string>('Initial State');
  public currentState: Observable<string> = this.stateSource.asObservable();

  updateState(value: string) {
    this.stateSource.next(value);
  }
}

This implementation allows any component to react to data changes automatically. The BehaviorSubject ensures that new subscribers always receive the latest value immediately upon subscription, which is crucial for maintaining a consistent UI state.

Architectural Improvements

By moving logic out of the component classes and into shared services, we achieved:

1. Encapsulation: Components no longer need to know how the state is derived or stored.
2. Testability: We can now test our state logic independently of the DOM.
3. Maintainability: Changes to the underlying data architecture are now isolated to the service layer.

The Takeaway

When your UI complexity increases, don't just add more input properties. Evaluate if your state management can be replaced by an observable stream. Start by identifying one shared data dependency in your project and refactoring it into a service-based stream today.
